Constructing real numbers

Rational numbers

Horizontal and inclined line meeting at zero. Dotted lines joining these lines at intervals of 1/5.

We know that every rational number can be plotted on the number line.
Here is an example illustrating the construction of \(\dfrac{1}{5}, \dfrac{2}{5}, \dfrac{3}{5} \text{and} \dfrac{4}{5}\).
Starting with 0 and 1 on l, draw any line m through 0 (ml).
Choose a point A1 on m, (A1 ≠ 0).
With a compass construct equally spaced points 0, A1, A2, A3, A4 and A5 on m.
Join A5 to 1 − call this line n.
Finally, construct four lines parallel to n through A1, A2, A3, A4 meeting l at four points.
These points on l are equally spaced, so we have constructed \(\dfrac{1}{5}, \dfrac{2}{5}, \dfrac{3}{5} \text{and} \dfrac{4}{5}\) on the line l.

Irrational numbers on the number line

Using the diagonal of a 1-by-1 square to locate square root of 2 on a number line.
Detailed description

We can place the square root of any whole number on the number line using Pythagoras'
For example, to plot \(\sqrt{2}\) we first construct a
square on the interval from 0 to 1. Then we draw the diagonal from 0, which has
length \(\sqrt{2}\), and use compasses to place this length
on the number line.

Other surds and Pythagoras

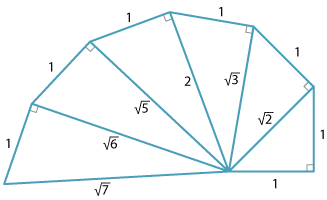

The diagram illustrates how the square roots of some other integer values can be constructed. Using the same methods as above, these irrational numbers can be placed on the number line.

Six right-angled triangles creating a spiral shape.
Detailed description
